Extrusion Blow Molding Machine & Turnkey Lines
BlowPacker delivers industrial-grade extrusion blow molding machines engineering for containers from 100ml to 1000L. Complete one-stop solutions from custom molds to global plant commissioning.
Response time ≤ 24h · Multi-language support · Chemical, household, lubricant, and agrochemical packaging
Extrusion Blow Molding Principle: From Melted Resin to Hollow Containers
The extrusion blow molding process is the industry standard for manufacturing high-strength, uniform hollow plastic products. By continuously or intermittently melting and forming thermoplastic resins, this process delivers exceptional wall-thickness uniformity and high-volume structural integrity across complex geometries. For production-scale automation, explore our blow molding machines optimized for extrusion applications.
- Parison Extrusion: Plastic pellets are homogenized through a heated extruder barrel and forced through an annular die head to form a continuous, molten tubular preform known as a parison.
- Clamping & Cutting: Two halves of a precision-engineered mold close securely around the suspended parison, pinching off the bottom edge to seal the preform.
- Blow Inflation: A blow pin or needle injects regulated compressed air into the center of the parison, rapidly expanding the molten plastic against the water-cooled mold cavity walls.
- Cooling & Ejection: The plastic solidifies quickly upon contact with the mold surface, after which the mold opens to automatically eject the finished container into downstream automated finishing lines.
Compatible Materials & High-Barrier Multi-Layer Co-Extrusion
- Broad Material Versatility: Seamlessly processes high-density polyethylene (HDPE), polypropylene (PP), polyvinyl chloride (PVC), and glycol-modified polyethylene terephthalate (PETG).
- Advanced Multi-Layer Configurations: BlowPacker machinery comes standard with multi-layer co-extrusion support, enabling up to 6-layer structures that integrate EVOH or nylon barrier layers to prevent chemical permeation; for PET applications, consider a dedicated stretch blow molding machine for optimized bottle clarity and performance.
- Sustainability Integration: Systems are designed to incorporate a dedicated regrind core layer, allowing you to reprocess up to 50% post-industrial recycled (PIR) material without compromising outer surface aesthetics or overall container strength.
The 4-Step Extrusion Blow Molding Process Timeline
Step 1: Material Blending & Feeding
Raw polymer granules and required additives or color masterbatches are metered, gravimetrically blended, and fed into the extruder hopper for consistent melt processing.
Step 2: Continuous Parison Extrusion
The material is plastified and forced through the die head. A parison programmer adjusts the die gap in real-time to control regional wall thickness throughout the vertical profile.
Step 3: Mold Inflation & Cooling
High-pressure compressed air inflates the parison to capture the exact geometric details of the mold cavity. Internal cooling channels rapidly drop the plastic temperature to preserve geometry.
Step 4: Automatic Demolding & Deflashing
The heavy-duty clamping unit opens, and the rigid hollow part is extracted. Integrated flash-trimming equipment automatically separates top and bottom flash for immediate recycling.
Extrusion Blow Molding Applications and Industry Coverage
From 100ml daily-use packaging to 1000L high-molecular-weight industrial containers, BlowPacker extrusion blow molding solutions are trusted by leading global brands across the chemical, lubricant, cosmetic, and food packaging sectors. We design and deliver dedicated extrusion blow molding machines configured to match your specific container design, weight constraints, and production outputs.
Household & Personal Care
Capacity: 100ml–5L
Materials: HDPE / PP
Engineered for high-speed production of laundry detergent jugs, shampoo bottles, and sprayers. Supports complex handle geometry and precise parison thickness control to minimize weight without compromising structural strength.

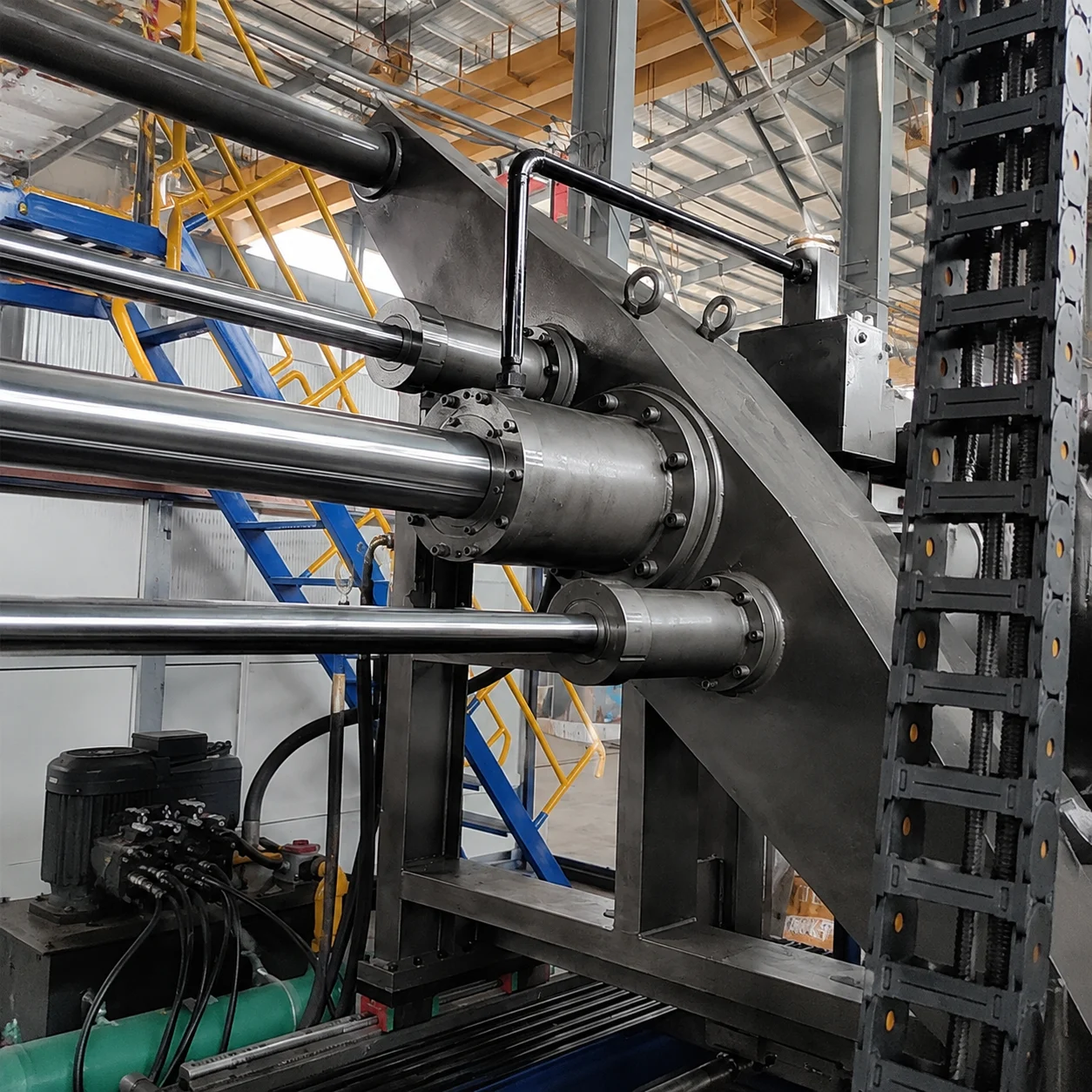

Lubricants & Automotive Fluids
Capacity: 1L–20L
Materials: Multi-layer HDPE / Co-extrusion
Optimized for durable oil canisters and anti-freeze bottles. Features multi-layer co-extrusion technology with integrated view-stripe capability, delivering high drop-impact resistance and reliable leak-proof performance.
Chemical & Agro-Chemical Packaging
Capacity: 5L–200L
Materials: HDPE / EVOH Barrier / PCR
Heavy-duty plastic drums and containers built to pass stringent UN certification testing. Utilizes 3-to-6 layer co-extrusion blow molding options to embed high-barrier EVOH layers that prevent chemical permeation and hazardous gas escape.
Food & Condiment Packaging
Capacity: Various Sizes
Materials: Food-grade HDPE / PP
Hygienic processing configurations for edible oils, sauces, and dairy jugs. All contact parts meet strict food safety standards, and parison extrusion is optimized for pristine structural integrity and oxygen barrier integration.
Medical & Healthcare Vials
Capacity: Small to Medium Volumes
Materials: High-Purity HDPE / PP / PETG
Configured for cleanroom integration and precise micro-injection or precise extrusion blow molding. Delivers ultra-stable wall thicknesses for pharmaceutical jars, physiological saline bottles, and medical hollow components.
Industrial Bulk Packaging (IBC)
Capacity: 200L–1000L
Materials: High-Molecular-Weight HDPE
Heavy-duty industrial packaging blow molding machinery designed for high-capacity intermediate bulk containers (IBCs). Features robust clamping systems and accumulator die heads for uniform parison control during large-scale production using our high-performance PET bottle blowing machines.
Process Selection Insight: Extrusion blow molding (EBM) is highly recommended over injection stretch blow molding (ISBM) when your plastic products require integrated handles, complex non-cylindrical geometries, thick and robust structural walls, or multi-layer functional barriers (such as incorporating PCR or EVOH core layers). It stands as the industry standard for chemical-resistant packaging, heavy-duty industrial drums, and versatile hollow parts, and is fully supported across our complete range of blow molding products.
Extrusion Blow Molding Machine Specifications & Configurations
Versatile Capacity Range
- 100ml–5L small high-speed personal care and medical bottles
- 5L–30L mid-size jerrycans, stackable drums, and automotive fluid jugs
- 30L–200L open-top or tight-head industrial chemical drums
- 200L–1000L heavy-duty IBC bulk containers and large storage tanks
Flexible Cavity & Output Modes
- Single-station and dual-station shuttle configurations to optimize footprint
- Multi-cavity die heads engineered precisely for uniform parison distribution
- High-throughput continuous extrusion or accumulator head configurations
Multi-Layer Co-Extrusion Options
- Single-layer setups optimized for economical, standard packaging jobs
- 3-layer co-extrusion: integrates post-consumer recycled (PCR) cores
- 6-layer high-barrier structures incorporating EVOH for agrochemical stability
Production Rates & Cycle Efficiency
- Optimized dry cycle times with high-speed proportional clamping valves
- Scalable throughput ranging from hundreds to thousands of containers per hour
| Extrusion Blow Molding Metric | Standard Capabilities & Engineering Limits |
|---|---|
| Container Capacity Range | From 100ml precision bottles up to 1000L industrial IBC liners |
| Die Head Configuration | Single to multi-cavity parison extrusion with continuous or accumulator systems |
| Layer Technology | 1-layer economy, 3-layer PCR sustainable, and 6-layer EVOH chemical barrier options |
| Throughput Performance | Engineered to deliver from 200 to 3,600+ units/hour based on container volume and weight |
Drive System
- Full servo-driven carriage movement and mold clamping mechanism
- Reduces energy consumption by up to 30% compared to traditional hydraulics
- Provides ultra-precise repeatability for demanding cycle requirements
Control Architecture
- Premium Siemens or Beckhoff PLC hardware with intuitive touch HMI
- Real-time 100-point parison wall thickness control for uniform mass distribution
- Integrated IoT modules for secure remote diagnosis and over-the-air updates
BlowPacker standardized platforms ensure local global parts availability across our blow-molding-machines portfolio.
Hydraulic & Pneumatic
- Bosch Rexroth proportional hydraulic valves for smooth, fast clamp build-up
- Festo or SMC pneumatic valves and cylinders for robust, low-maintenance operations
- High-flow air circuits designed for rapid, optimal container cooling cycles
Energy Management
- Insulated ceramic or induction heater bands minimize ambient thermal loss
- Closed-loop internal temperature regulation across all extruder barrel zones
- Kinetic energy recovery systems integrated into heavy structural motions
Consult with BlowPacker’s engineering department to match these configuration options to your target layout, or explore our complementary automatic blow molding machine solutions for hybrid production lines. For small-container precision, see our injection blow molding machine options.
BlowPacker Extrusion Blow Molding Machine Series
Depending on your product capacity and application, BlowPacker provides a diverse range of extrusion blow molding machine series covering everything from small personal care bottles to massive industrial IBC tanks. Explore our full portfolio of blow molding machines, all engineered and tested by our in-house team to guarantee seamless integration and reliable line compatibility.
Small Bottle Series
High-speed, compact footprint machines optimized for personal care, food packaging, and medical containers. These configurations are ideal when you need a flexible automatic blow molding machine for rapid multi-cavity production and fast mold changes.
- Capacity Range: 100ml – 5L
- Multi-cavity high-output efficiency
- Ideal for HDPE, PP, and PVC
Mid-Size Drum Series
Engineered for heavy-duty industrial containers, including lubricants, automotive fluids, and agrochemicals. These configurations suit applications that may later scale into a stretch blow molding machine setup and feature advanced multi-layer co-extrusion and parison control.
- Capacity Range: 5L – 30L
- Multi-layer co-extrusion options
- In-line deflashing & thickness control
Large Chemical Drum Series
Heavy-duty blow molding systems built for high-capacity industrial packaging and dangerous goods. Reinforced structures ensure maximum wall strength to meet rigid UN certifications.
- Capacity Range: 30L – 200L
- Reinforced clamping force design
- Excellent impact & drop resistance
IBC Container Lines
Turnkey production lines engineered for industrial bulk logistics and chemical warehouse liquids. Completely integrated from precise extrusion blow molding to steel frame assembly.
- Capacity Range: 200L – 1000L
- Full turnkey line integration
- Advanced multi-layer barrier options
Extrusion Blow Molding vs. Injection Blow Molding vs. Stretch Blow Molding: How to Choose
Selecting the right molding process depends entirely on your product’s volume, design, structural integrity, and material requirements. While injection and stretch molding excel in specific lightweight or high-clarity applications, extrusion blow molding remains the industry standard for robust, large-scale, and multi-layer industrial packaging. Use this comparison matrix to determine the optimal production path for your container lines and explore our full portfolio of blow molding products to match your needs.
| Evaluation Criteria | Extrusion Blow Molding (EBM) | Injection Blow Molding (IBM) | Stretch Blow Molding (SBM) |
|---|---|---|---|
| Target Capacity Range | 100ml up to 1000L (Unmatched scalability) | Strictly small scale, typically under 2L | 10ml to 5L (Standard retail bottle scale) |
| Typical Finished Products | Heavy-duty chemical drums, jerrycans, agrochemical jugs, automotive fluid reservoirs, and large 1000L IBC totes produced on industrial blow molding machines. | Small pharmaceutical vials, cosmetic jars, and medical containers with precise neck finishes. | Carbonated beverage bottles, clear PET water bottles, and consumer food containers. |
| Wall Strength & Profile | Thick, impact-resistant structures; supports multi-layer parison co-extrusion for oxygen/vapor barriers. | Fixed wall thickness with excellent tight-tolerance dimensional control over thread designs. | Thin-walled, biaxially oriented resin structures engineered for high tensile strength and top-load performance, typically produced on a dedicated stretch blow molding machine. |
| Tooling & Engineering Cost | Moderate tooling costs; rapid product changeovers and high mold-geometry flexibility. | High initial capital expenditure due to complex, two-stage precision tool components. | High infrastructure and tooling investment required for preform and final blow cavities. |
| Material Compatibility | Highly versatile: HDPE, PP, PVC, and PETG; uniquely optimized for high-molecular-weight resins. | Primarily limited to HDPE, PP, and standard non-stretch PET formulations. | Engineered almost exclusively for PET, stretchable resins, and specific clear polymers. |
When to Choose Extrusion Blow Molding for Your Production Line
- Industrial Packaging with Strict Compliance: Ideal for manufacturing thick-walled chemical drums and agrochemical jugs requiring UN certification, maximum chemical resistance, and drop-test durability.
- Large-Volume & Complex Geometry Storage: The only viable process for blowing high-capacity heavy packaging, ranging from 20L lubricant containers to massive 1000L IBC totes.
- Advanced Multi-Layer Barrier Structures: Crucial when your product demands multi-layer extrusion (up to 6 layers) utilizing integrated EVOH barrier resins to prevent permeation or to safely incorporate PCR (post-consumer recycled) core layers.
- Varying Industrial Container Sizes: Perfect for operations needing flexible mold modifications and variable machine configurations to accommodate different weight distributions and handle integrations on a single production line.
- Heavy-Duty Application Demands: Essential when manufacturing containers that require high stress-crack resistance (ESCR) and rugged wall strength to withstand demanding transport and warehouse stacking conditions.
Extrusion Blow Molding Machine Performance & Efficiency Metrics
Energy savings achieved through full servo drives and optimized heating zone control across our blow molding machine products.
Scrap rate minimized via precise parison wall thickness tracking and engineered mold cooling water lines on our blow molding machines.
Factory Acceptance Testing (FAT) pass rate, with full-scale industrial production trials completed on every stretch blow molding machine line.
Of common operating issues resolved via secure PLC remote diagnostics to minimize unplanned plant downtime.
All performance indicators are derived from BlowPacker’s verified field installations and engineering project data. Actual throughput and savings vary depending on specific plastic materials, container geometries, and machine configurations.

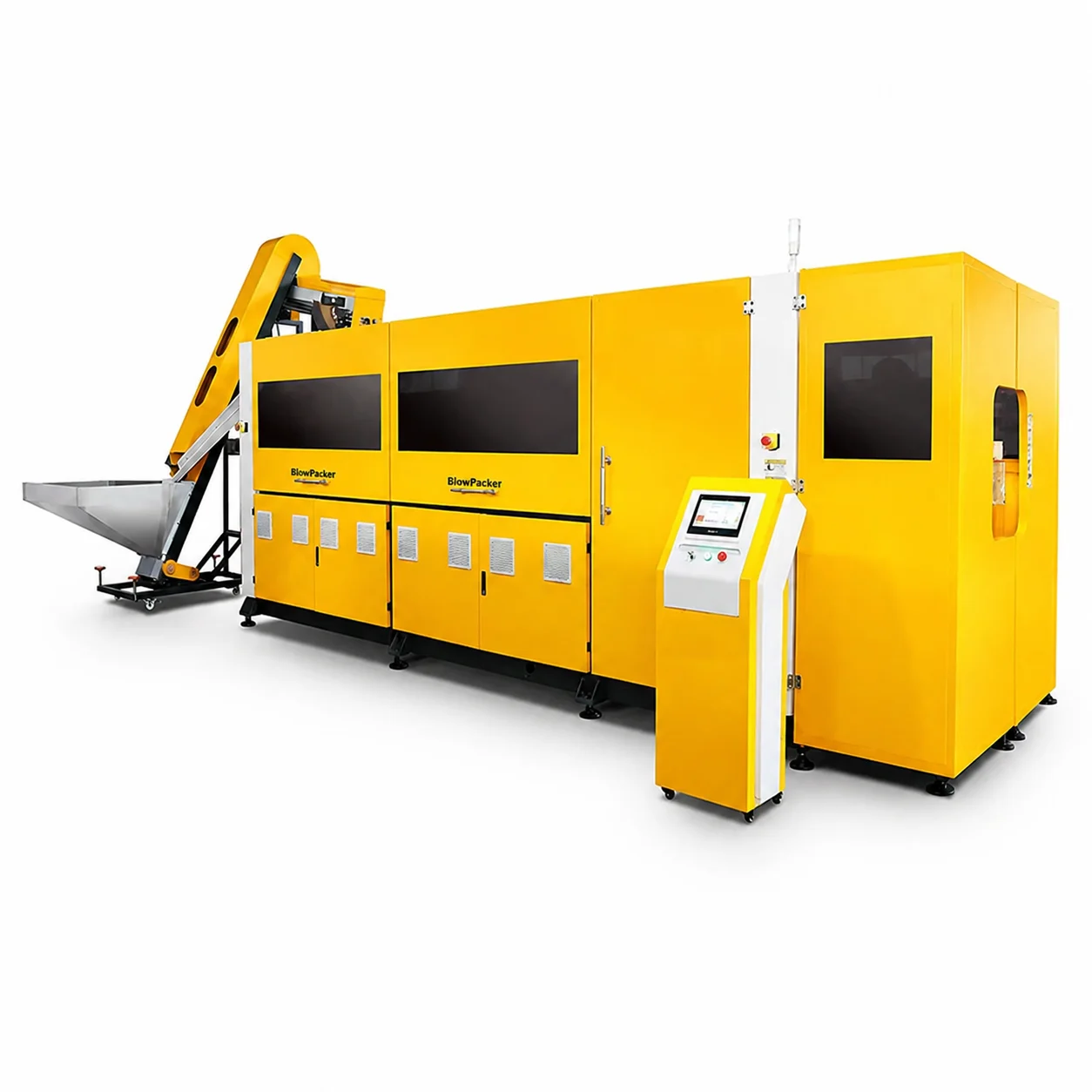

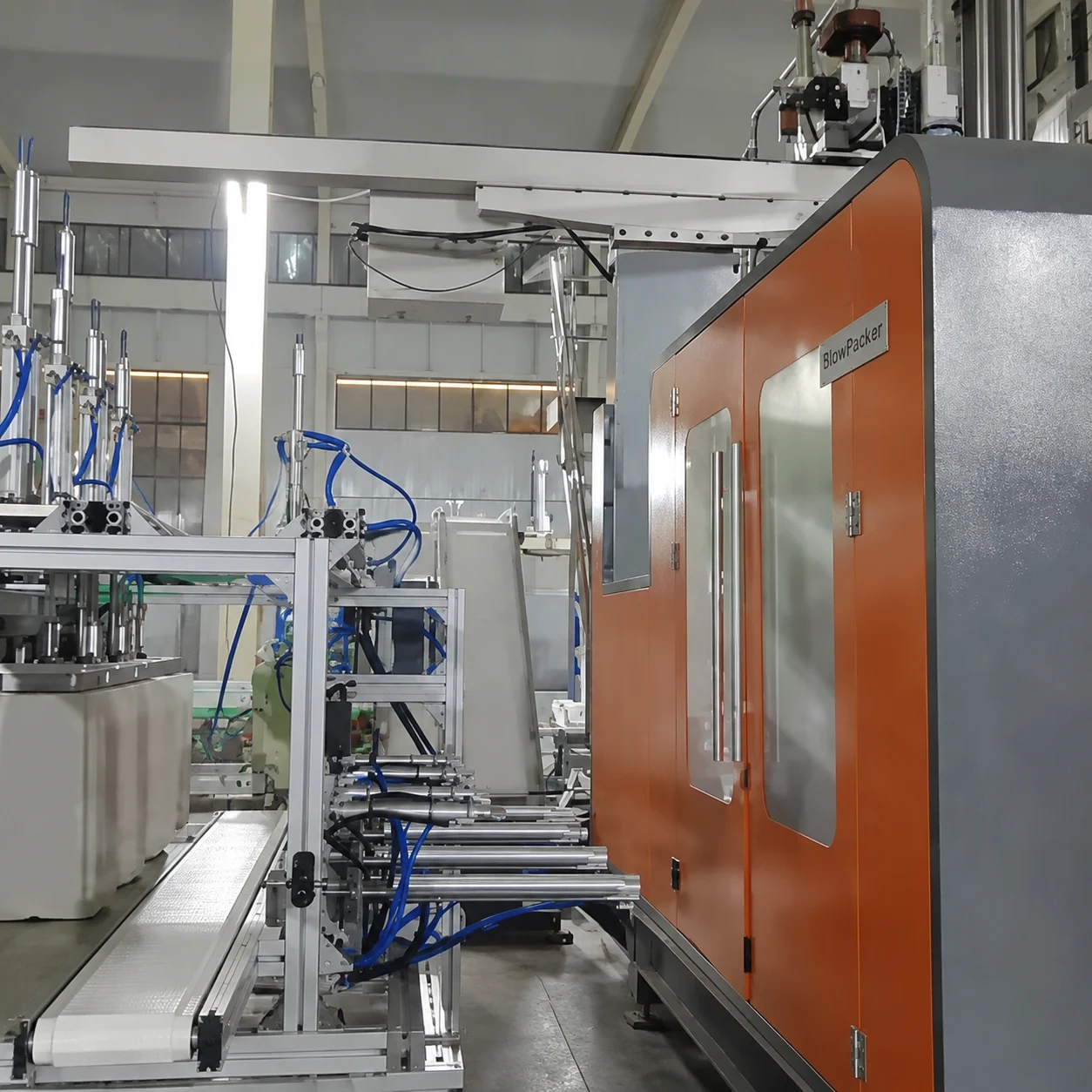

Turnkey Extrusion Blow Molding Production Lines
BlowPacker provides end-to-end turnkey project delivery, managing everything from initial product evaluation to final on-site installation. We transition your concepts into high-efficiency manufacturing systems with full accountability for line compatibility and performance, leveraging our advanced blow molding machines.
1. Assessment & Evaluation
We analyze your container geometry, resin choice (such as HDPE or multi-layer EVOH), throughput targets, and facility compliance parameters.
2. Layout & Manufacturing
Our engineering team designs the complete line layout, optimizing plant space while manufacturing the blow molding machinery and high-precision tooling, including fully automatic solutions such as our automatic blow molding machines.
3. Manufacturing & FAT
Before shipping, we conduct a rigorous Factory Acceptance Test (FAT) using your actual production materials to verify structural wall-thickness and cycle times.
4. Installation & Training
Our specialized engineers handle overseas deployment, line synchronization, operator training, and establish standard operating protocols.
Complete Plant Integration
- Core Machinery: Extrusion blow molding machines, custom mold sets (CNC aircraft-grade aluminum/S50C), and integrated deflashing units that can be configured with stretch blow molding machines for PET applications.
- Auxiliary Systems: Automated material feeding and blending systems, precision chillers, inline weighing scales, and leak testers.
- Services & Engineering: Project layout design, multi-language PLC automation controls, standardized documentation, and technical support.
BlowPacker assumes complete responsibility for executing your extrusion blow molding line from design through commissioning. Whether you are building a new facility or upgrading an existing packaging line, we ensure your turnkey project is delivered to strict specifications. Pair machinery with dedicated extrusion blow mold tooling for faster commissioning.
Certified Quality & Global Service Assurance
To eliminate the risks of overseas equipment sourcing, BlowPacker has established a rigorous quality traceability system covering every stage of design, machining, and final assembly. We safeguard your blow molding machines line investment by matching international safety compliance with premium industrial components.
- Premium Component Sourcing: Built with standard-setting hardware from Siemens, Beckhoff, Festo, SMC, and Rexroth for effortless long-term maintenance.
- 100% Factory Acceptance Testing (FAT): Every machine undergoes comprehensive trial runs with real production materials before it leaves our floor.
- Third-Party Inspections Welcome: We fully cooperate with independent international testing agencies to verify compliance prior to shipping.
100% FAT Testing
We execute complete mold trials and parison control calibrations according to your exact product specifications for each automatic blow molding machine, ensuring immediate start-up upon delivery.
Remote Diagnostics
Our integrated Siemens/Beckhoff PLC platforms support secure remote troubleshooting to resolve over 90% of operational faults instantly without downtime.
Extrusion Blow Molding Machine FAQ & Technical Guidance
Find answers to common technical inquiries regarding BlowPacker systems, capabilities, and deployment, and explore our blow molding machines portfolio for additional configuration details.
Have specific project specifications, material requirements, or cycle-time targets? Contact our application engineering team for a customized line layout.
Plan Your Extrusion Blow Molding Line with Our Engineers
BlowPacker has deployed industrial-grade extrusion blow molding systems for leading brands worldwide. Explore our full range of products, including dedicated blow molding machines, then share your product dimensions and output targets, and our engineering team will deliver a preliminary project layout and budget estimate within 24 hours.
