Automotive Blow Molding Solutions
Turnkey Systems for High-Performance Plastic Components
Engineered mass-production capability, precise wall-thickness control, and absolute geometric consistency for complex fuel systems, fluid reservoirs, and EV cooling lines. BlowPacker delivers industrial-grade extrusion blow molding production lines and precision tooling for the global automotive supply chain. Explore our full range of blow molding products designed for automotive applications.
Dozens of turnkey production lines and tooling projects deployed worldwide. Optimized for HDPE, PA, PA12, and advanced multi-layer EVOH co-extrusions.
Comprehensive Application Mapping Across ICE and New Energy Vehicle Platforms
Our solutions cover automotive blow molded parts ranging from standard single-layer fluid reservoirs to advanced multi-layer barrier systems. The BlowPacker engineering team partners with Tier 1 and Tier 2 suppliers to optimize tool geometry and parison programming, ensuring production stability and precision tailored to each vehicle platform.

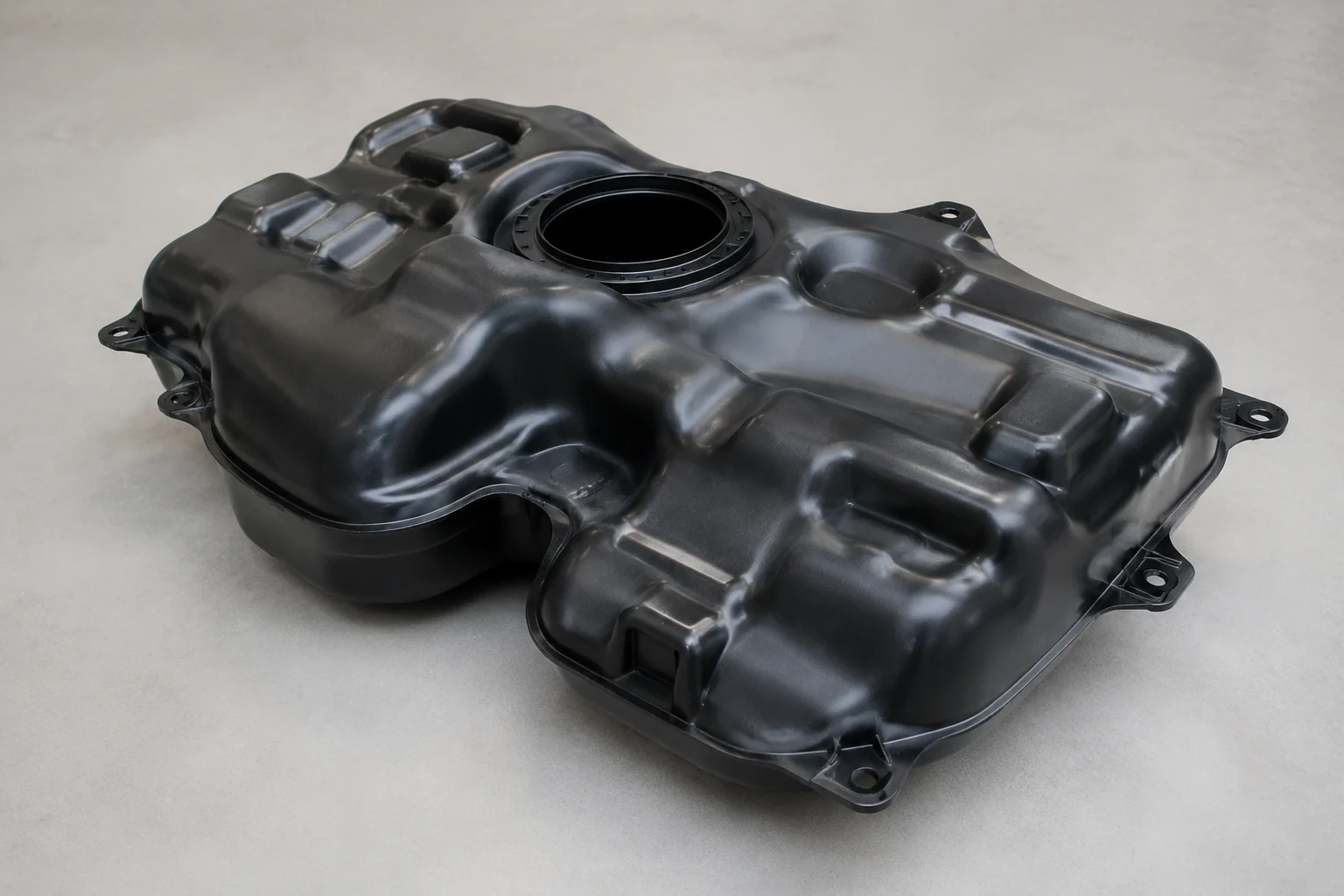

Automotive Fuel Tanks
- Multi-layer co-extrusion structures designed to meet stringent EVAP and CARB environmental regulations
- Large-volume, high-capacity blow molding with uniform wall thickness across complex contour geometries
- Pre-configured provisions for integrated sensor mounts, fuel pumps, and robust mounting brackets

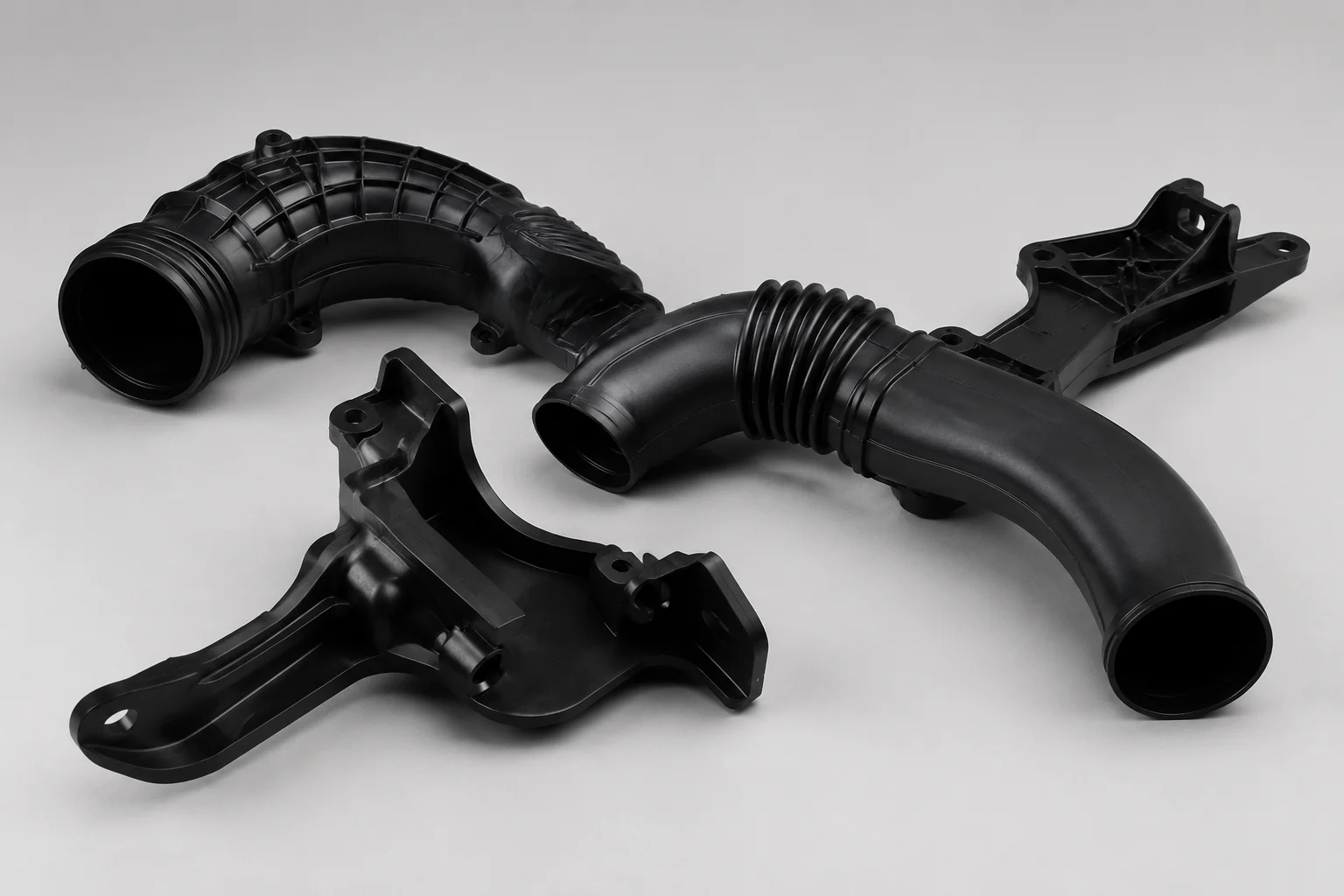

Air Intake & Turbo Ducts
- Full compatibility with high-temperature, chemically resistant engineering plastics like PA6, PA66, and TPE
- Precision parison manipulation to eliminate thin spots along tightly curved and convoluted duct sections
- Smooth internal surface finish designed to minimize pressure drops and optimize engine airflow paths

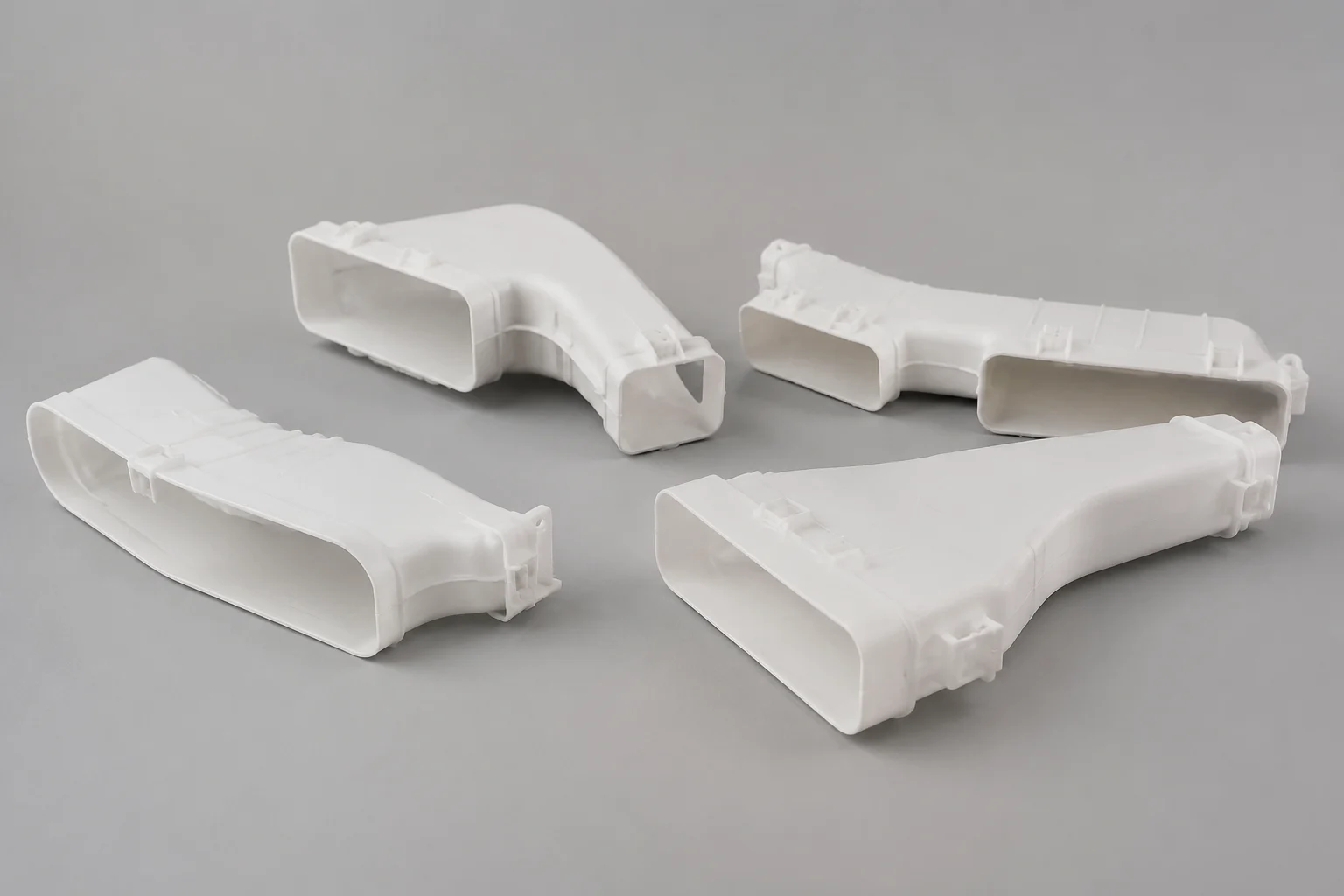

HVAC & Cabin Ducts
- High-efficiency multi-cavity blow molding layouts to satisfy aggressive volume requirements for major OEMs
- Lightweight, thin-walled structural integrity paired with tight dimensional tolerances for rattle-free assembly
- Engineered multi-layer combinations to improve cabin thermal insulation and acoustic dampening characteristics

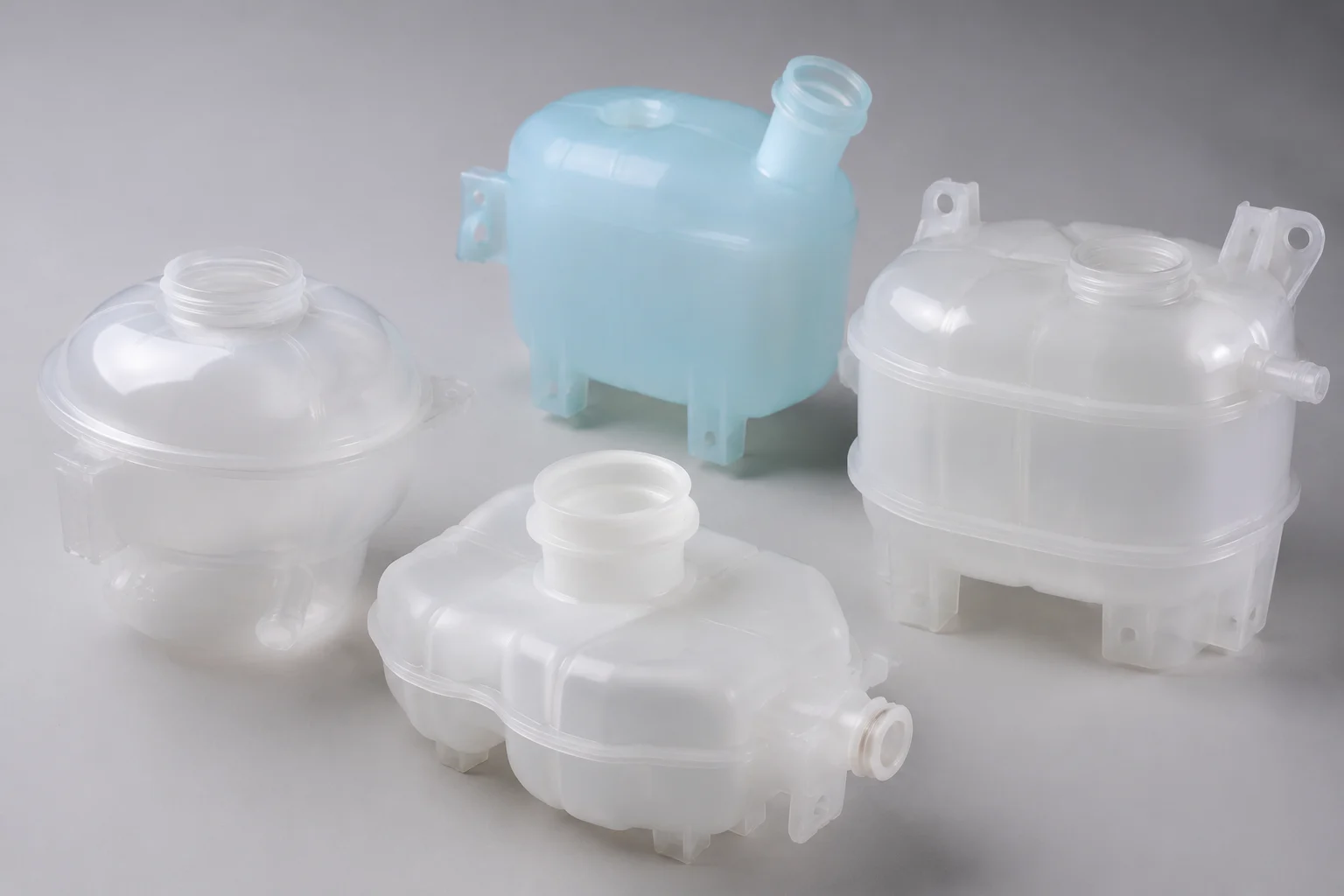

Fluid Reservoirs & Expansion Tanks
- Turnkey automation for brake fluid, windshield washer fluid, and radiator coolant expansion tanks
- High-speed cycle times for small to medium-sized hollow automotive parts using rapid-cooling blow molds
- Optimized for seamless integration with downstream automated post-molding assembly, welding, and leak testing

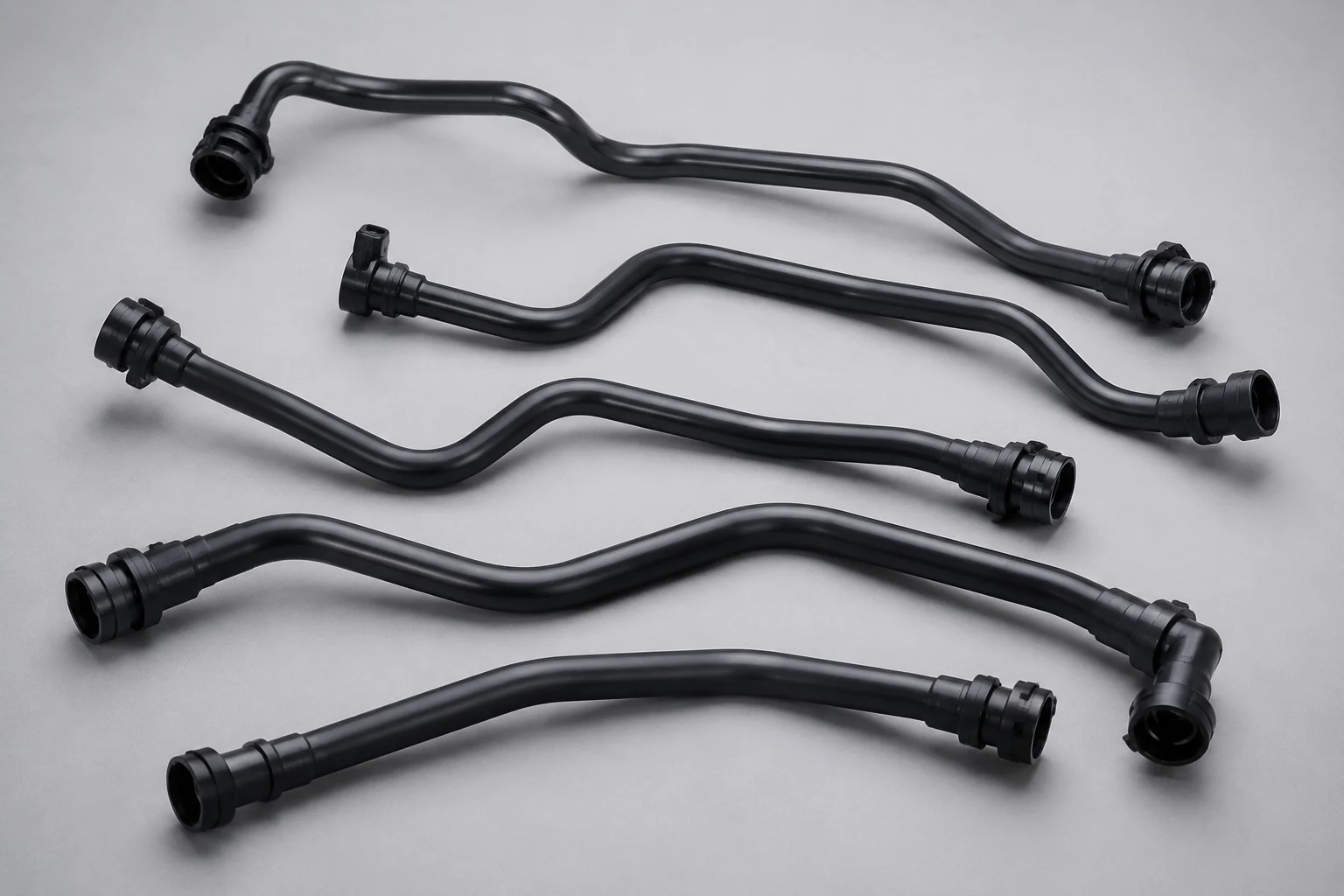

EV Battery Cooling Lines
- Specialized processing of advanced polyamides (PA12) and complex multi-layer barrier cooling tube configurations
- Engineered to ensure zero leak risk and flawless thermal management performance inside electric vehicle battery packs
- Joint process development services covering early-stage pilot prototyping and production validation runs

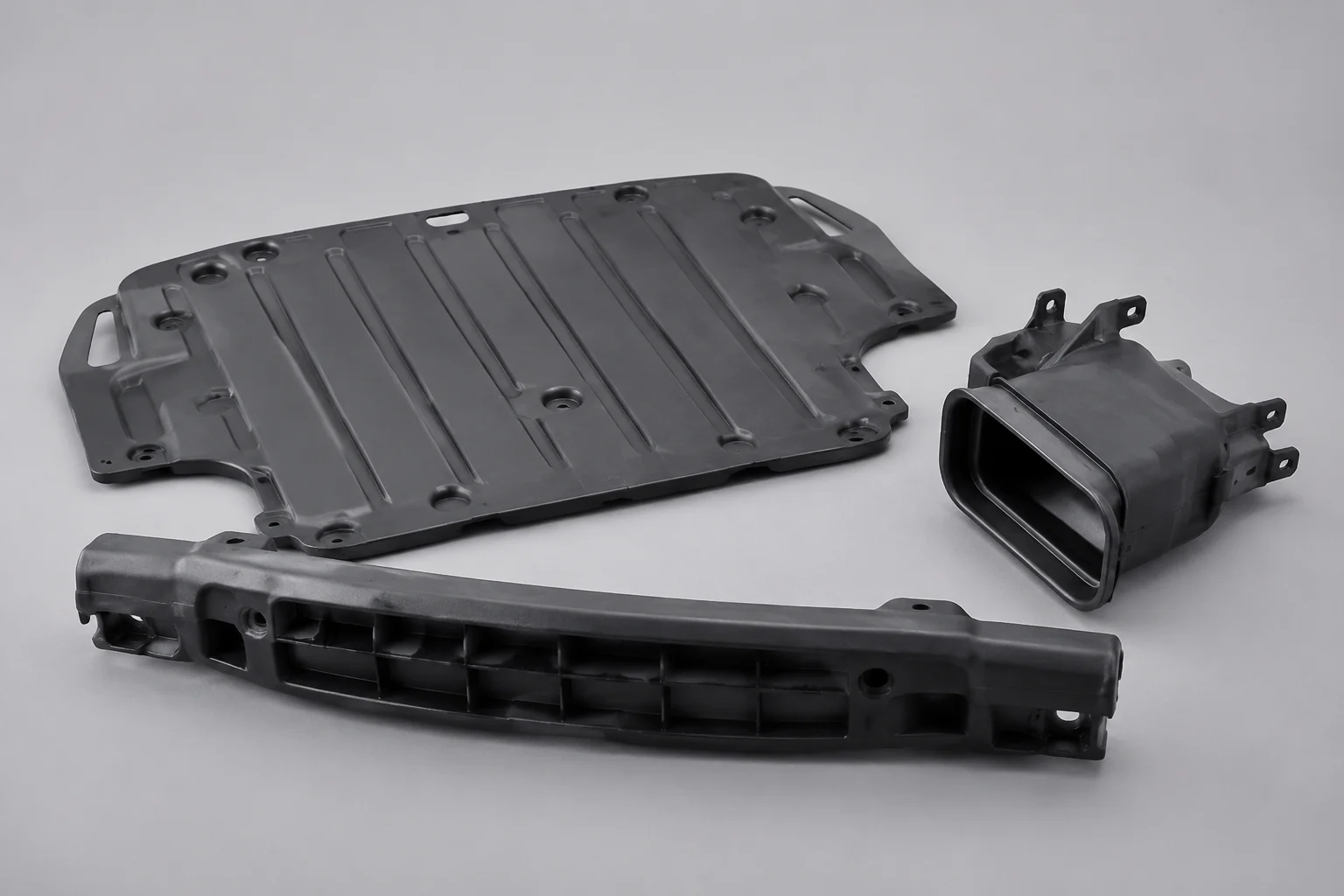

Custom Structural Components
- Co-development of rigid, lightweight hollow structural components like bumper beams, floor boards, and spoilers
- Rapid pilot mold manufacturing and functional sample prototyping to support vehicle PPAP documentation
- Tailored extruder configurations and process parameter adjustments for reinforced glass-fiber compounds
The BlowPacker team provides expert engineering support to Tier 1 and Tier 2 suppliers, ensuring blow molding processes are precisely adapted for each vehicle platform’s unique design and performance requirements. We also supply dedicated blow molding machines and a full range of automotive duct products to support scalable production programs.

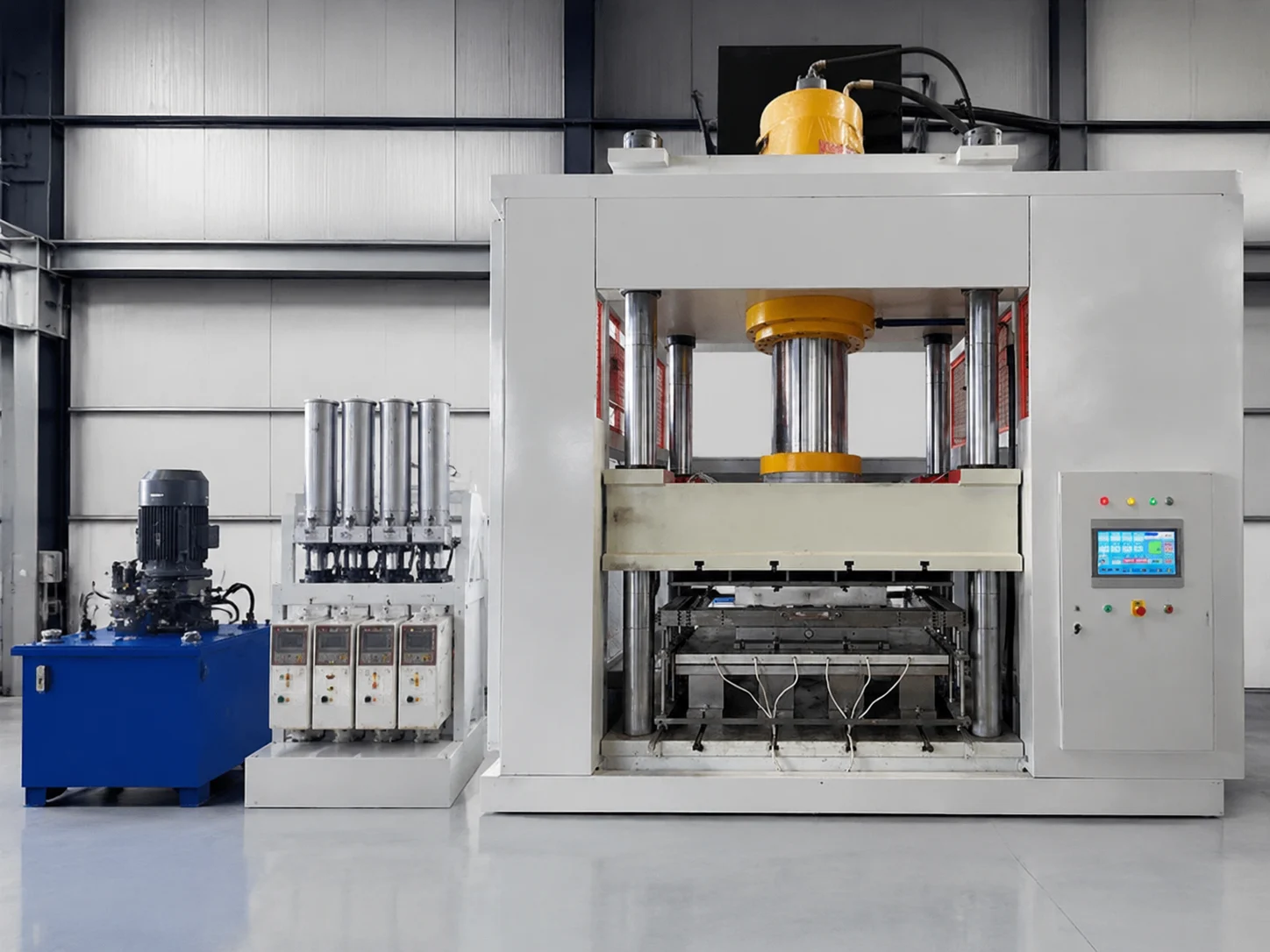

Advanced Automotive Blow Molding Processes & Integrated Equipment Engineering
Long-term manufacturing stability in the automotive supply chain depends entirely on reliable machinery mechanics, precise parison control, and thermodynamic mold optimization. BlowPacker delivers comprehensive, turnkey engineered production lines where heavy-duty blow molding machinery, custom precision molds, and downstream automation share a unified control layer. This integrated approach minimizes SOP lead times, eliminates compatibility bottlenecks, and secures absolute part-to-part consistency for tier-one suppliers while keeping all blow molding products aligned to uniform quality and performance baselines.

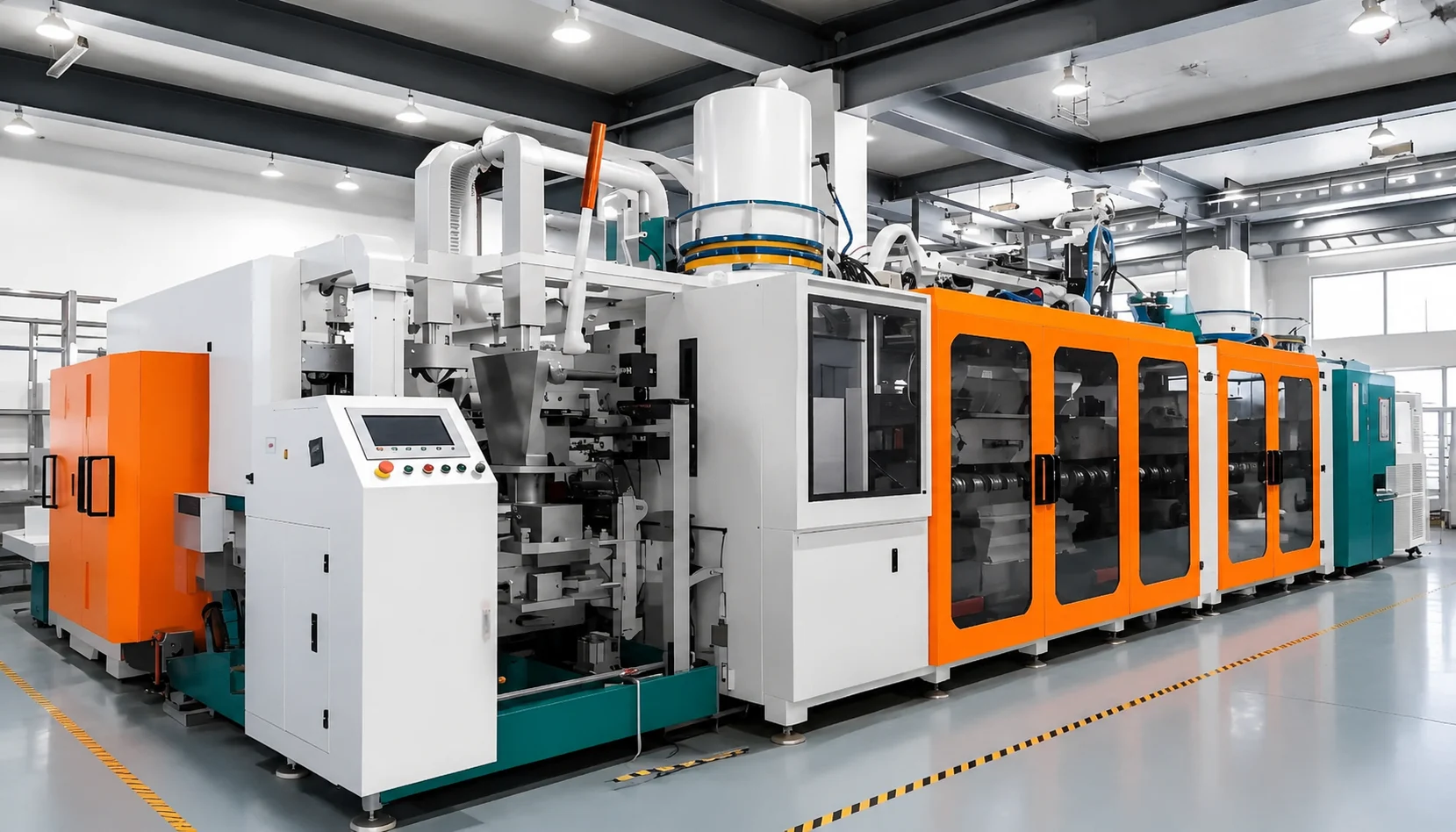

Heavy-Duty Extrusion Blow Molding (EBM) Lines
Engineered specifically for complex multi-layer automotive fuel tanks, large-capacity fluid reservoirs, and irregular under-hood ductwork, supporting a versatile volume range from 100 ml up to 1000 L. These systems feature full-servo hydraulic drives that deliver up to 30% energy savings during continuous operation, alongside advanced multi-layer co-extrusion die heads designed to meet rigorous global EVAP and CARB environmental emission standards and mirror the performance of our industrial extrusion blow molding machines.
Precision PET Stretch Blow Molding (SBM) Systems
High-speed, fully automated stretch blow molding configurations optimized for high-clarity transparent fluid reservoirs and pressurized tanks. Engineered to run at high cycles while maintaining a strict reject rate below 0.2%, these systems ensure precise wall thickness and visual clarity for immediate, reliable fluid level inspection on the assembly line, leveraging the same platform as our dedicated stretch blow molding machines.
Custom Automotive Mold Engineering & Tooling
In-house CNC-machined tooling fabricated from high-grade aviation aluminum alloys and durable S50C steel base frames. Equipped with multi-zone conformal cooling channels to drastically reduce cycle times, our molds integrate sliding cores, hydraulic threaded inserts, and quick-change mechanism frames to maximize production uptime across multi-model car platforms.
Core Hardware & Sub-System Specifications
- Siemens or Beckhoff PLC control architectures optimized for multi-axis parison tracking and complex automotive processing curves
- Festo or SMC pneumatic systems paired with Rexroth proportional hydraulics for precise, high-repeatability clamping forces
- Industry 4.0 compliant remote diagnostic modules with automated process parameter logging for complete quality traceability
Looking for complete machinery specifications? Explore our technical sub-directories for turnkey extrusion blow molding equipment, high-speed PET stretch blow molding systems, and specialized precision mold manufacturing capabilities.
| Automotive Process Technology | Volume Capacity | Layer Configuration | Energy & Drive Efficiency | Primary Automotive Application |
|---|---|---|---|---|
| Extrusion Blow Molding (EBM) Line | 100 ml – 1000 L | Single to 7-Layer Co-extrusion | Full-servo system, ~30% consumption reduction | Multi-layer fuel tanks, large reservoirs, complex air intake ducts |
| Stretch Blow Molding (SBM) System | Up to 5 L | Single Layer (High Clarity PET) | High-speed continuous automation, <0.2% reject rate | Transparent expansion tanks, brake fluid & windshield washer reservoirs |
| Precision Mold Manufacturing | Customized to Part | N/A (Conformal Cooling) | Optimized thermal design for rapid cooling & cycle reduction | Engineered mold tooling for all complex automotive blow molded parts |
Advanced Polymer Engineering and Global Automotive Regulatory Compliance
Automotive Blow Molding Materials & Resin Matrix
- High-Density Polyethylene (HDPE): Engineered for structural integrity and high Environmental Stress Crack Resistance (ESCR) in premium automotive fuel tank blow molding applications.
- Multi-Layer Co-Extrusion Systems: Advanced multi-layer architectures integrating continuous EVOH barrier layers encapsulated within structural HDPE envelopes to prevent fuel permeation.
- Engineered Polyamides (PA6 & PA12): High-performance resins formulated for elevated thermal resistance, ideal for under-hood air intake ducts and complex EV battery cooling circuits that can be paired with our advanced extrusion blow molding machine products.
- Performance Compounds & Additives: Process-stable masterbatches including specialized flame retardants, UV stabilizers, and glass-fiber reinforcements for demanding field environments.
Regulatory Framework & Technical Compliance Management
- Evaporative Emissions Standards: Technical guidance to support rigorous EVAP, EPA, and CARB testing protocols for multi-layer fuel systems and low-permeation components.
- Sustainability & Circular Economy: Process optimization strategies accommodating high percentages of post-industrial recycled (PIR) material without compromising mechanical behavior.
- Automotive Quality Infrastructure: ISO 9001 certified and CE verified manufacturing processes backed by comprehensive data logging to support client PPAP submission packages across our full range of blow molding products.
Process Validation Note: BlowPacker provides definitive processing windows, material performance tracking, and pilot molding parameter records during the machine runoff phase. vehicle-level homologation and component certification remain the sole responsibility of the client, ensuring exact alignment with regional automotive mandates.
Our specialized material engineering group works directly with global resin suppliers to isolate melt index boundaries and map out reliable process stability curves prior to equipment delivery. By verifying parison behavior early in the engineering phase, BlowPacker helps Tier-1 suppliers and OEMs minimize trial-and-error cycle times, protect mold investments, and secure predictable production outputs from day one.

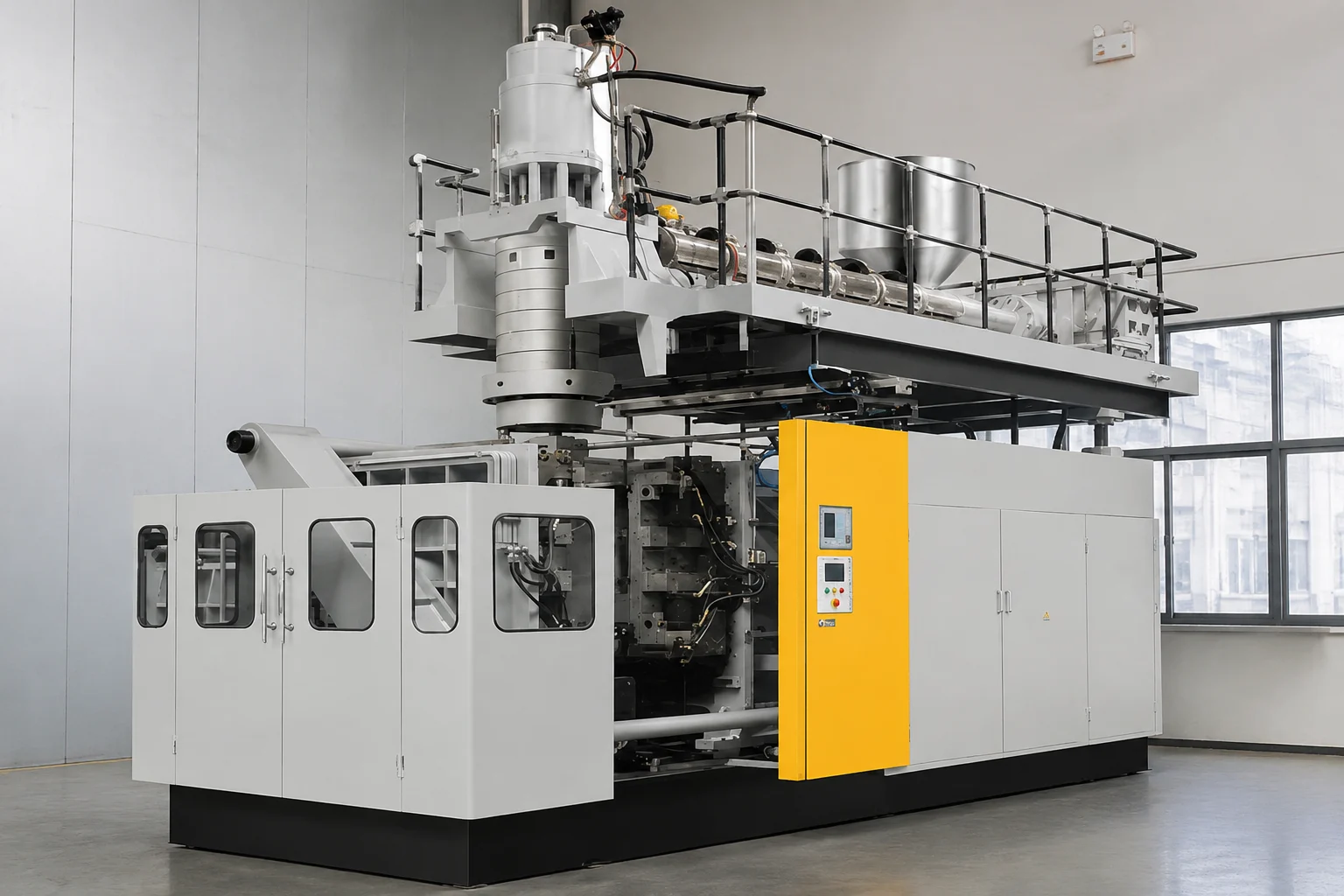

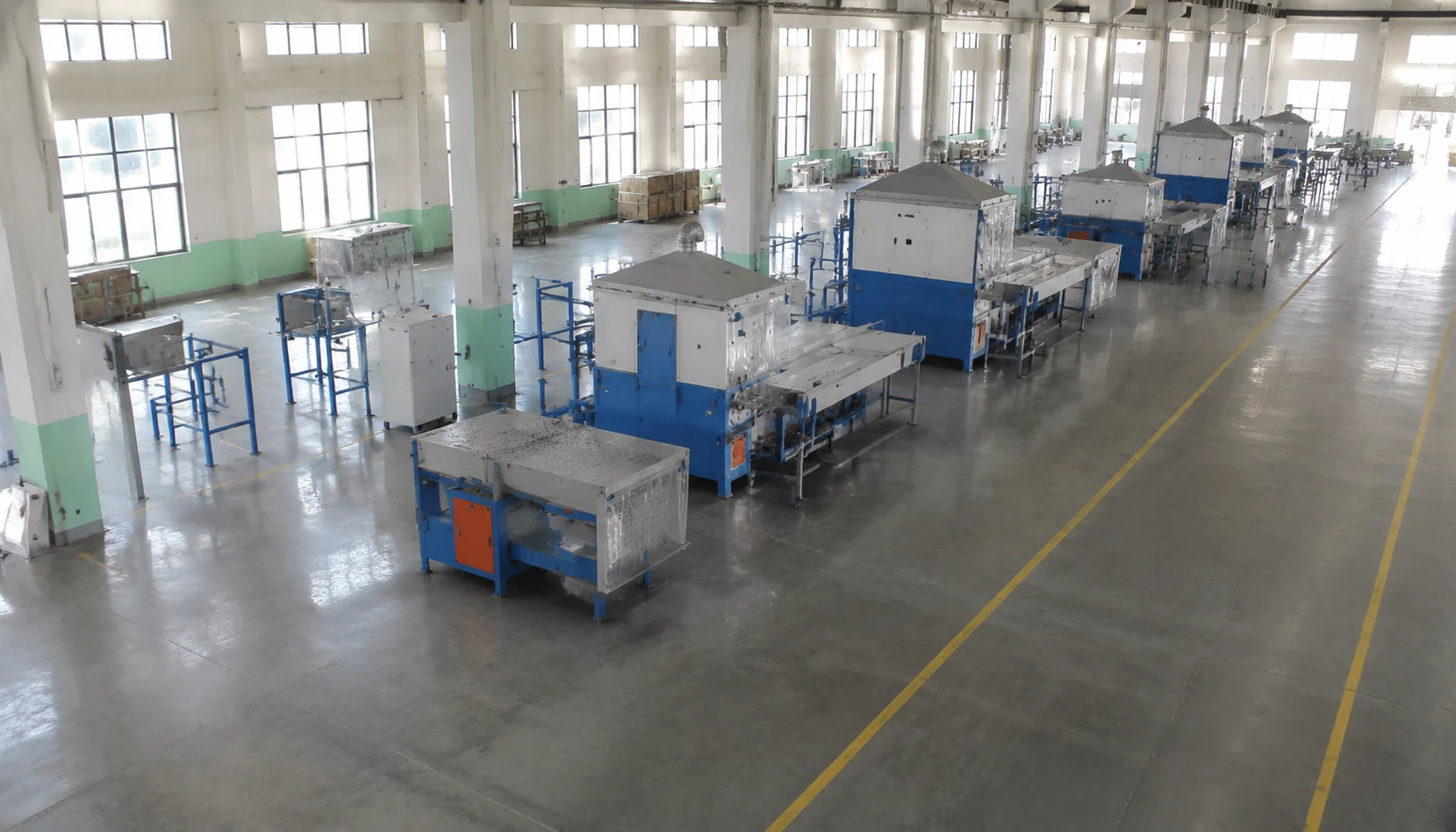

Turnkey Production Line Architecture Blueprints
Every BlowPacker turnkey blow molding line configuration is custom-engineered to align with your plant floor dimensions, strict cycle time requirements, and regional automotive manufacturing regulations. By developing the complete extrusion blow molding cell—from integrated parison control and precise mold water cooling systems to synchronized downstream automation—we deliver a highly optimized manufacturing asset that pairs seamlessly with our blow molding products. These configurations allow global automotive Tier-1 and Tier-2 suppliers to transition smoothly into standard operating procedures (SOP) while reducing total cost of ownership.

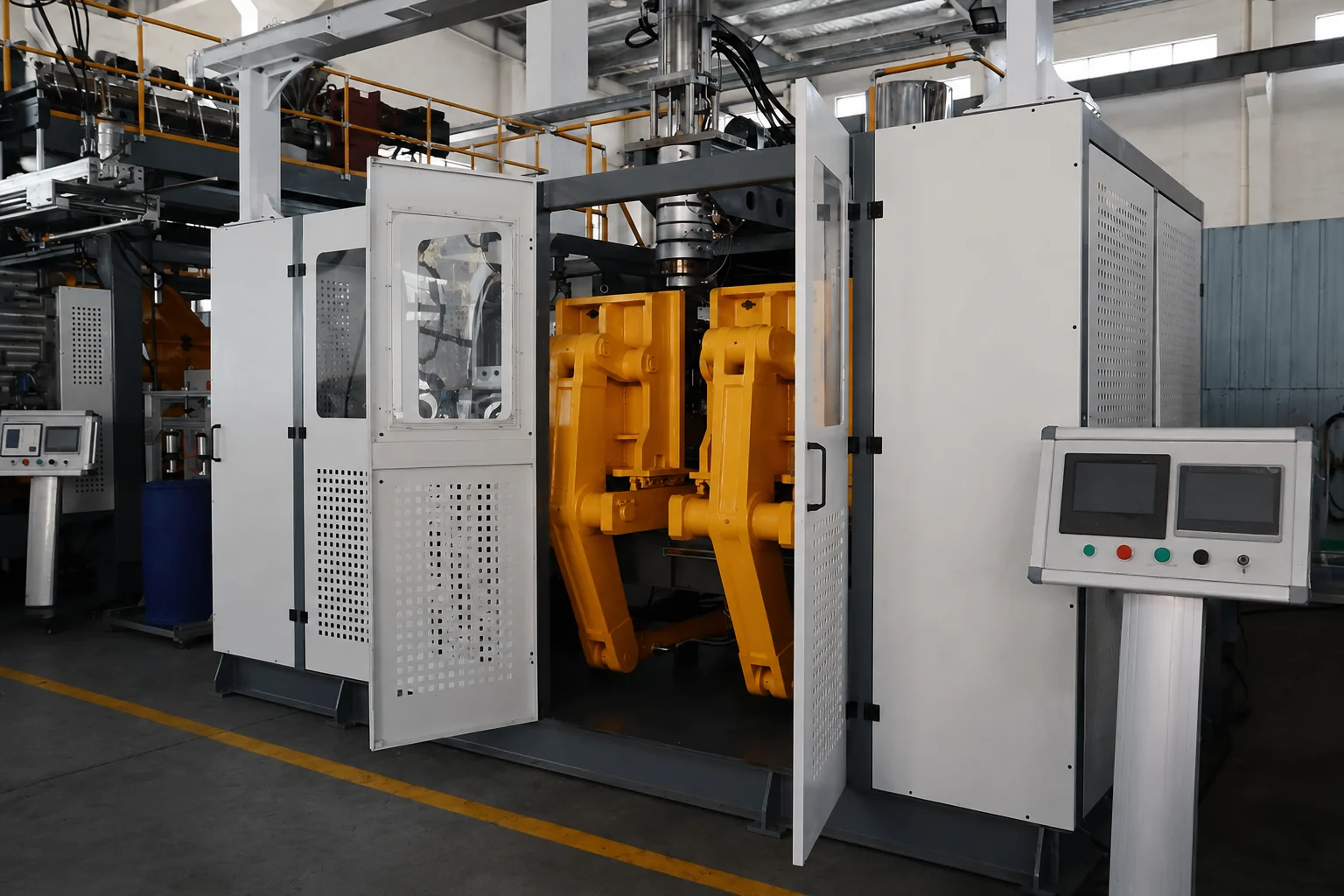

Multi-Layer Fuel Tank Cell
- Designed for 30 L to 80 L high-density polyethylene (HDPE) systems
- Advanced co-extrusion technology supporting multi-layer EVOH barrier structures using extrusion blow mold tooling
- Automated continuous de-flashing, wall thickness monitoring, and integrated leak testing

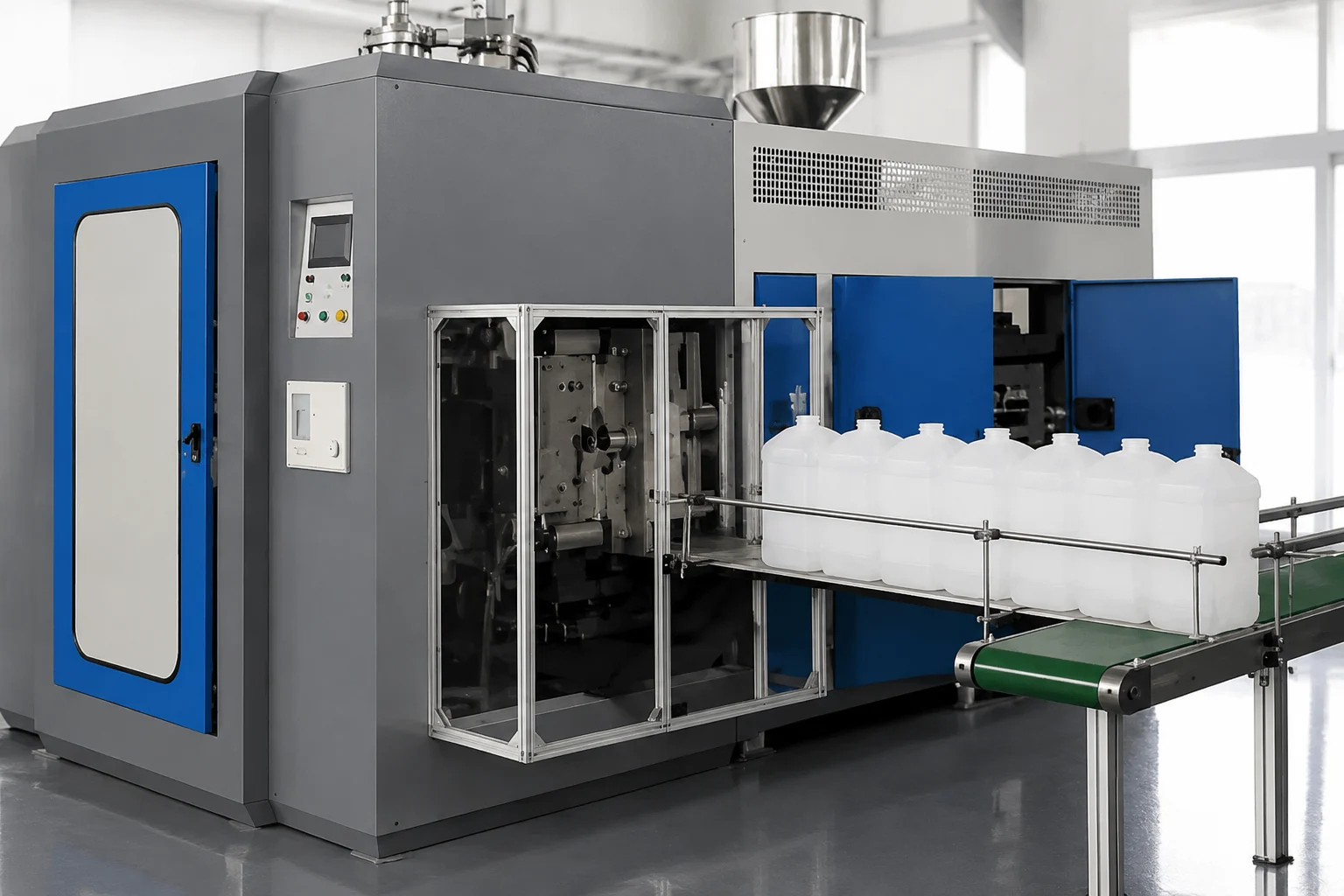

High-Volume Reservoir System
- Optimized for complex windshield washer, brake fluid, and coolant surge tanks
- Dual-station extrusion or stretch blow molding machine configurations for high-speed output
- Robotic insert integration, high-precision neck trimming, and vision-based seal verification

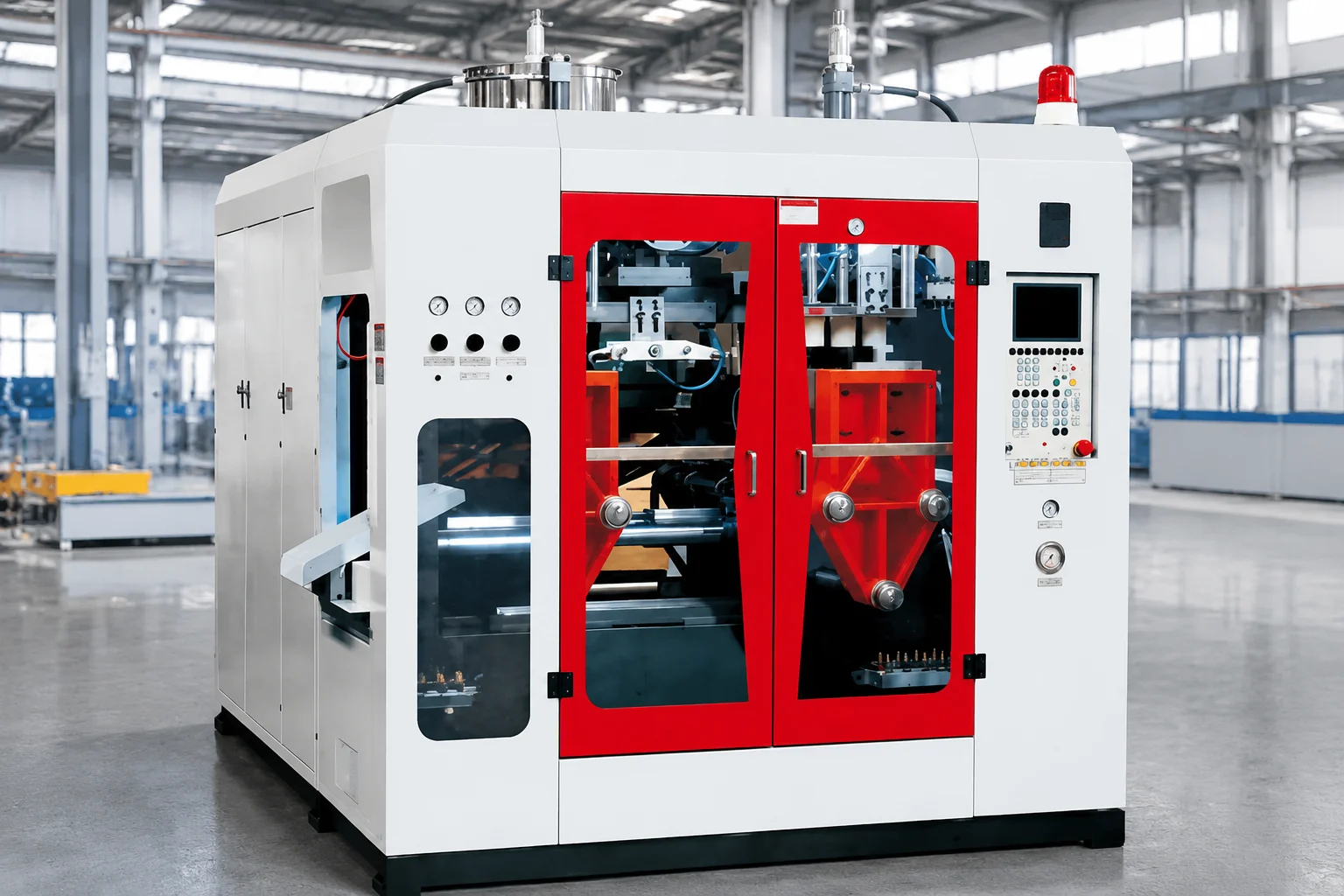

Flexible Under-Hood Duct Line
- Engineered for multi-axial air intake ducts and high-temperature turbocharger paths
- Quick-clamp mold clamping mechanisms to facilitate rapid multi-car platform product changeover
- Post-molding robotic flashing removal and automated structural bracket assembly stations
From Specification to SOP: Risk-Mitigated Automotive Blow Molding Project Execution
- 1
Feasibility & Part Optimization
- Comprehensive 2D/3D design reviews
- Advanced wall thickness prediction
- 2
Architecture & Modeling
- Turnkey blow molding machines line layouts
- Financial CAPEX & capacity modeling
- 3
Tooling & Engineering
- Precision mold flow & thermal design
- Custom PLC logic & automation sync
- 4
Factory Acceptance (FAT)
- 100% mechanical line verification
- Testing via designated client resins
- 5
Field Run & Validation
- On-site plant commissioning
- Operator training & pilot runs
- 6
Mass Production SOP
- Real-time IoT telemetry diagnostics
- Global spare parts protocols
- 1
Feasibility & Part Optimization
- Comprehensive 2D/3D design reviews for complex automotive blow molded parts
- Advanced wall thickness prediction modeling to eliminate weak zones in deep-draw structures
- 2
Architecture & Financial Modeling
- Custom automotive extrusion blow molding machines engineering and complete facility layout planning
- Detailed total cost of ownership (TCO) estimation and cycle time forecasting
- 3
Tooling & Engineering
- Precision mold fabrication utilizing high-grade materials and optimized cooling geometries for injection blow molding machines
- Tailored PLC logic configuration, sensor arrays, and downstream automation programming
- 4
Factory Acceptance (FAT)
- 100% mechanical, structural, and electrical testing inside our facility before shipment
- Extrusion parameters and parison controls validated using designated client production resins
- 5
Field Run & Validation
- Expert on-site technical installation, fluid integration, and line fine-tuning
- Comprehensive technical crew training and strict pilot-run validation support
- 6
Mass Production SOP
- Continuous performance monitoring enabled by secured IoT telemetry and remote diagnostics
- Rapid response maintenance, wear-and-tear optimization, and critical spare parts protocols
Managing an automotive blow molding project demands absolute precision. BlowPacker enforces strict execution milestones and mandatory factory verification to keep your production line ramp-up predictably on schedule, mitigating procurement risks and accelerating your time-to-market.
Automotive Quality Control Frameworks and Product Traceability
Component failure is completely unacceptable in automotive assembly lines. BlowPacker manufacturing cells operate under strict internal quality matrices for both equipment validation and molded parts, providing Tier-1 suppliers and OEMs with the precise documentation and structural verification required to satisfy stringent automotive quality audits across our automotive products.
ISO 9001:2015 Certified Manufacturing Infrastructure
Complete CE Machinery Safety Compliance
Comprehensive Engineering Documentation for Client PPAP Submissions on our blow molding machines
Our rigid on-machine quality execution processes mandate a 100% mechanical Factory Acceptance Testing (FAT) protocol before shipment. This ensures that every extrusion blow molding machine meets exact specifications for cycle times, clamping force distribution, and wall thickness uniformity before deploying to your production floor.
To maintain strict automotive industry compliance, the control system executes continuous data logging of parison extrusion temperatures, parison programmer configurations, and hydraulic clamp pressures per individual shot. This granular data tracking enables comprehensive process traceability and immediate variation detection during long-run manufacturing.
Furthermore, secure remote link integrations facilitate direct data export to facility MES and ERP networks. By streamlining real-time diagnostics and historical data collection, BlowPacker equipment ensures that your facility passes internal audits and third-party supplier quality reviews with fully verifiable manufacturing records.
Proven Operational Outcomes: Global Automotive Blow Molding Case Studies
6-Layer Fuel Tank Blow Molding Project
Engineered an automated 6-layer co-extrusion extrusion blow molding (EBM) turnkey line equipped with continuous parison programming and integrated helium leak testing for a European passenger vehicle platform using our latest extrusion blow molding machine technology.
- Achieved a consistent first-pass yield (FPY) ≥ 99.5%
- Reduced factory floor energy consumption by 20% via servo systems
- Fully certified production asset meeting stringent EVAP emissions standards
Tier 1 Engine & Air Ducting Production Program
Deployed advanced multi-cavity blow mold tooling integrated with quick-clamp changeover mechanisms and smart PLC recipe storage for a high-volume Asian OEM supplier handling diverse part geometries.
- Slashed line changeover times from 120 minutes down to just 30 minutes
- Boosted weekly manufacturing throughput and capacity by 25%
- Optimized wall-thickness uniformity across complex automotive plastic ducts
EV Polyamide Thermal Management Components
Developed specialized plastic extrusion screw profiles, tailored parison tooling, and precise cooling cycles to support a next-generation electric vehicle platform utilizing technical PA12 multi-layer materials.
- Shortened prototype validation and pre-SOP development cycles
- Significantly increased first-article acceptance rates for thin-walled parts
- Stabilized dimensional tolerances for complex battery cooling lines
These field-proven deployments demonstrate how BlowPacker delivers reliable automotive blow molded parts, custom tooling, and turnkey manufacturing assets to Tier 1 suppliers and OEM assembly plants worldwide, all powered by our integrated BlowPacker blow molding machines and specialized extrusion blow molding machines platform.
Automotive Blow Molding Solutions Frequently Asked Questions
Find quick answers regarding turnkey line scope, third-party machinery integration, project lead times, and global field support for automotive blow molding programs.
Initiate Your Automotive Blow Molding Program
Submit your product parameters to receive a formal automotive blow molding quotation and a custom production line layout based on our advanced blow molding products and high-output blow molding machines. BlowPacker engineering teams will evaluate your part data to deliver comprehensive design-for-manufacturing feedback and an accurate budget projection, recommending the ideal extrusion blow molding machine configuration for your application.
All inbound engineering inquiries are reviewed by BlowPacker application engineers to provide a detailed, accurate response within 24 hours. For fuel tank and reservoir programs, explore our automotive blow molding solutions portfolio to align equipment scope with your component geometry.
